During power line inspections by industrial drones, the built-in lithium-ion batteries can suffer up to a 30% discharge capacity loss when temperatures fall below -10°C. Conversely, continuous high-temperature operation above 35°C drastically accelerates battery cycle life degradation.

As outdoor charging stations for drones, the internal temperature control system of a drone dock is pivotal for enabling all-weather, automated operations. Among various temperature control solutions, thermoelectric cooling, leveraging the Peltier effect, has emerged as a key technology to address this industry challenge.

The Drone Dock Temperature Control Challenge: Confronting Extreme Environments

Outdoor drone operations must face extreme and variable natural conditions. Traditional methods common in standard outdoor cabinets, such as compressor-based refrigeration and simple heaters, reveal significant shortcomings in the specific context of drone docks.

During summer heat, temperatures inside the enclosed drone bay can exceed 60°C. Lithium batteries in such environments not only experience reduced charging efficiency but also face risks of swelling, electrolyte leakage, and even thermal runaway, posing a major safety hazard to the entire dock.

In winter cold, low temperatures sharply decrease the chemical reaction rates within batteries, leading to a sudden drop in usable capacity. Furthermore, compressor-based solutions have drawbacks like significant vibration, limited starting temperature thresholds, and refrigerant requirements. In the high-vibration, frequent start-stop environment of drone operations, their reliability and adaptability are challenged.

Three Core Advantages of Thermoelectric (Peltier) Cooling

Thermoelectric cooling technology, based on the Peltier effect, uses direct current to drive efficient directional heat transfer. It has become the optimal solution for drone dock temperature control, precisely meeting core industry needs, thanks to three key advantages.

First is Broad Temperature Range and Integrated Cooling/Heating.

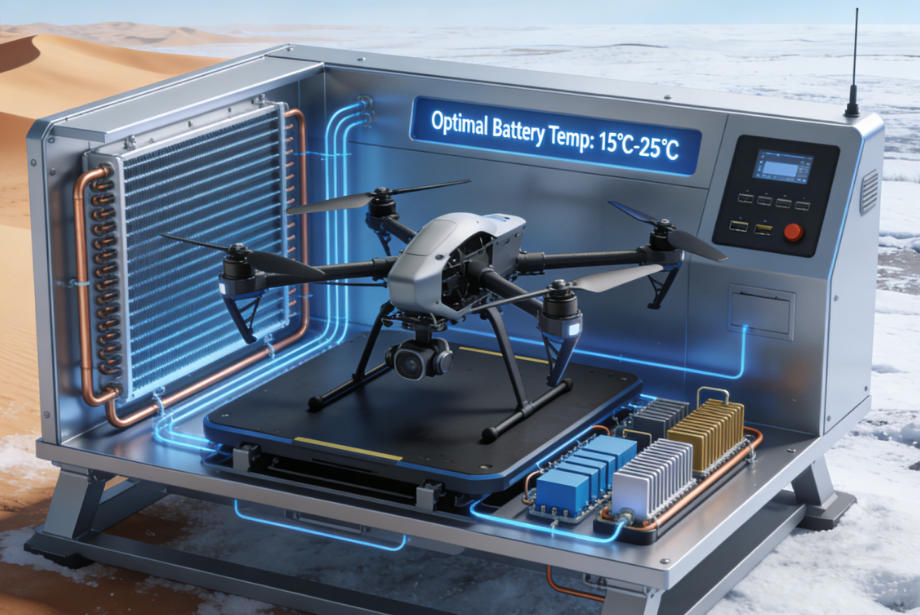

A single Peltier (TEC) module can seamlessly switch between cooling and heating on the same device merely by reversing the electrical current. This perfectly aligns with drone dock requirements: effectively cooling the battery compartment and electronics in summer, and switching to heating mode in winter to "pre-warm" the batteries, ensuring they consistently operate within the optimal 15°C to 25°C range.

Second is Exceptional Reliability and Maintenance-Free Operation.

Peltier modules contain no moving parts, eliminating the wear and tear issues of compressors. Their lifespan depends primarily on their electronic components. Additionally, they require no refrigerant. This is crucial for drone docks deployed in remote or hard-to-access locations like mountains or rooftops.

Finally, there is Precise and Rapid Temperature Control. Combined with high-precision temperature sensors and PID control algorithms, Peltier-based systems can stabilize temperature fluctuations within the battery compartment to within ±0.1°C. This not only maximizes battery lifespan but also enables optimized charging strategies with the Battery Management System (e.g., actively heating to a suitable temperature before fast charging in cold conditions).

Key Integration Points for Peltier Cooling in Drone Docks

Successfully integrating Peltier cooling into a drone dock is more than installing modules. It's a systematic engineering project involving thermal, electrical, and structural design.

Key Design 1: Efficient Heat Dissipation is Foundational.The Peltier module acts as a "heat mover," transferring heat from the battery compartment to its hot side. If the hot-side heat isn't dissipated promptly, the system fails. Therefore, a robust heat dissipation system is essential. For higher-power docks, this often means "forced air cooling with large fins" or more efficient "liquid cooling circulation systems."

Key Design 2: Low Power Consumption and Energy Compatibility. Many drone docks are deployed in areas without easy grid access, relying on solar power or storage batteries. The Peltier system's driver needs high conversion efficiency and must intelligently collaborate with the energy management system—for example, working at full capacity during peak sunlight to "store cooling" and operating in low-power maintenance mode at night.

Key Design 3: Environmental Protection and Internal Circulation. The dock shell needs at least IP65 rating for dust and water resistance. Internally, proper air duct design ensures even distribution of cool/heat to every battery module and critical electronic component, avoiding localized hot or cold spots.

Application Value of Peltier Cooling: More Cost-Effective Long-Term Operation

While the initial investment for a Peltier-equipped drone dock may be slightly higher than traditional solutions, it proves to be a wise investment considering full lifecycle operational costs and improved efficiency.

Extends Battery Life:Maintaining batteries at optimal temperature significantly slows capacity degradation.

Increases Availability and Operational Reliability:In extreme cold or heat, docks without temperature control may be inoperative all day. All-weather capable docks ensure continuity for inspection, security, and logistics missions, creating business and social value far exceeding the cost of the temperature control system itself.

Reduces Operational Complexity:High reliability means less on-site maintenance and troubleshooting. For widely distributed, hard-to-reach sites, this drastically lowers manual inspection and maintenance costs.

Specializing in Peltier technology and drone dock temperature control solutions, our company leverages years of technical expertise and extensive scenario adaptation experience. We provide customized Peltier modules and integrated temperature control solutions that combine low power consumption, high stability, and strong environmental adaptability.

These solutions integrate quickly without complex debugging, solidly establishing all-weather temperature control for various outdoor drone docks, and significantly enhancing the safety, stability, and efficiency of industrial drone inspections.
