As semiconductor devices, laser systems, and optical communication components continue to evolve toward miniaturization, high power and high precision, temperature disturbance has become a core bottleneck restricting the performance consistency and long-term reliability of equipment. A large number of engineering problems, including laser wavelength drift, deviation in chip test data and increased noise of photoelectric sensors, stem from the lack of stable and fast-response local temperature control solutions.

Traditional air-cooling and water-cooling systems are bulky and difficult to integrate into compact optical cavities. Large industrial chillers have shortcomings such as severe vibration, start-up lag, and inability to achieve bidirectional cooling and heating regulation. Against this backdrop, TEC thermoelectric coolers (semiconductor cooling modules) based on the Peltier effect have become the mainstream solution for OEM manufacturers of precision equipment.

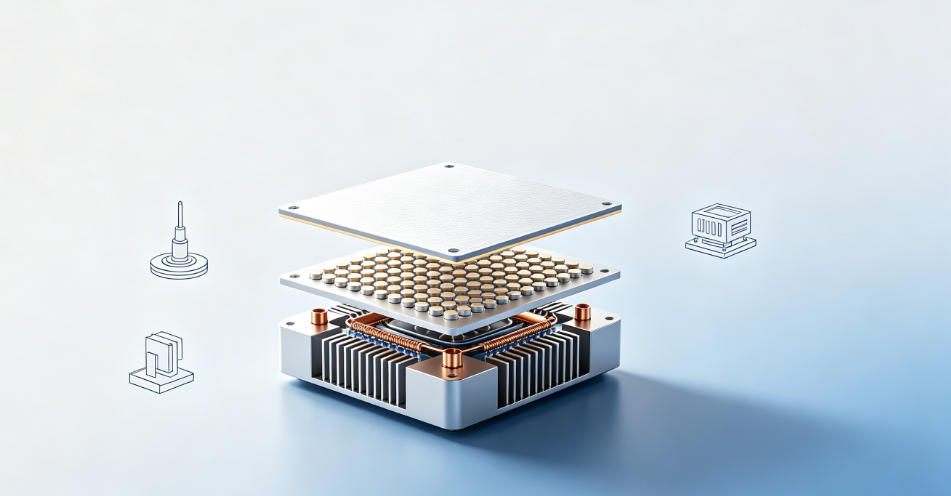

Composed of bismuth telluride thermoelectric particles, ceramic substrates and conductive electrodes, TEC modules have no compressors, refrigerants or moving parts. When connected to DC power, they can realize cooling on one side and heating on the other; switching the current direction enables rapid switching between cooling and heating modes. Equipped with a closed-loop PID temperature control circuit, the modules achieve a temperature control accuracy of ±0.05℃ to ±0.1℃, perfectly adapting to stringent application scenarios such as semiconductor lasers, DFB laser diodes, wafer-level testing jigs and biochemical analytical instruments.

Core Application Scenarios

Temperature Control for Semiconductor Lasers and Pump Sources

The wavelength of semiconductor laser diodes features obvious temperature drift characteristics. Every 1℃ change in temperature will cause a wavelength drift of 0.2 to 0.5 nm, which directly affects the output performance of industrial processing, medical beauty and scientific research measurement equipment. Integrated TEC modules can stabilize the temperature of the chip substrate, suppress threshold current drift, and extend the service life of lasers. High-power LD arrays are usually matched with water-cooled hot-end heat dissipation components to achieve stable continuous operation under high load.

Semiconductor Chip Packaging and Testing Equipment

Chip reliability testing requires simulating a wide temperature cycle environment ranging from -40℃ to 125℃. TEC temperature control platforms feature fast heating and cooling rates and adjustable temperature zones, enabling precise local temperature control for single chips and test carriers. Compared with integral high and low temperature chambers, they greatly reduce energy consumption and equipment volume, and are widely applied in ATE testing machines and probe station temperature control carriers.

Optical Communication Optical Modules and Infrared Detection Components

Miniature TEC components are highly integrated to meet the installation requirements of narrow internal spaces in optical device packaging. They ensure stable wavelengths of high-speed optical transceivers in complex environments and reduce communication bit error rates.

Key Points for TEC Engineering Selection

• Select the rated cooling capacity according to the actual thermal load and maximum temperature difference (ΔT) between cold and hot ends;

• Attach importance to hot-end heat dissipation design: natural heat dissipation is only suitable for low-power scenarios, and water-cooled cold plates are preferred for medium and high-power applications;

• The thermal interface materials and assembly pressure directly affect the overall thermal resistance;

• For humid and enclosed environments, anti-condensation structural design is required to avoid electric leakage caused by condensation on ceramic substrates.

Conclusion

A stable thermal management system is a key factor in the competitiveness of high-end semiconductor optoelectronic equipment. Huajing Temperature Control provides standardized TEC series modules, customized high-power thermoelectric components and integrated water-cooled cold plate solutions. We support customization of high-temperature resistant solder and special sizes to meet the OEM demands of laser medical treatment, semiconductor detection and optical instrument industries. If you are looking for a high-reliability integrated TEC temperature control solution, please contact us for thermal simulation support and sample testing.
