Temperature fluctuations within optical components significantly impact laser performance.

Precise and stable temperature control is a critical factor for maintaining laser emission characteristics at specific wavelengths.

If a laser cannot maintain an accurate wavelength and stable optical power across its wide operational temperature range, it can lead to signal power fluctuations.

This may cause the signal to leak into adjacent wavelength channels, potentially resulting in lost or corrupted data transmission. For instance, the high-definition video you are watching or your voice call could become blurry and unstable. For critical applications such as autonomous vehicles or telemedicine, this issue could have even more severe consequences.

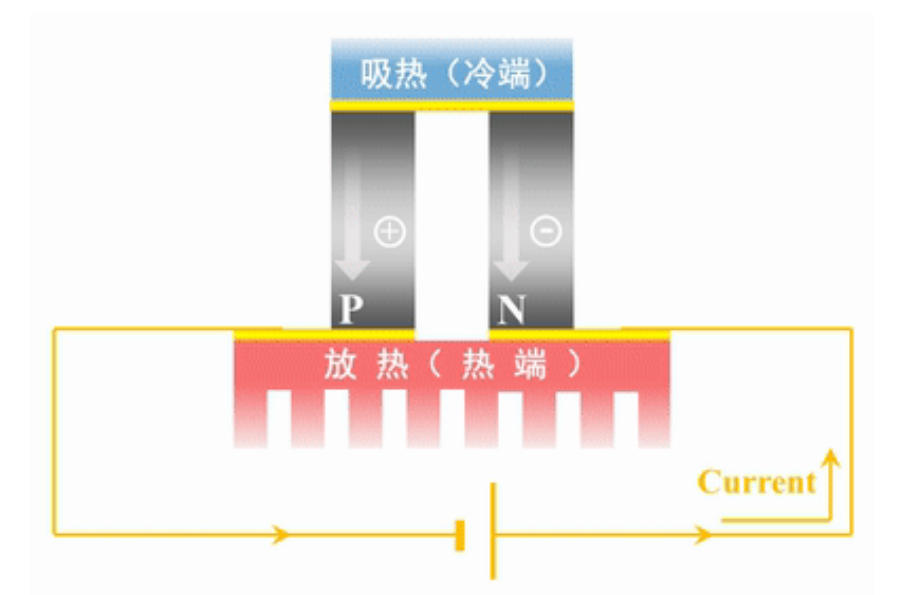

Why TECs are Used in Optical Devices TECs (Thermoelectric Coolers) are used in optical devices primarily for three reasons:

1. Maintaining Wavelength Stability:The wavelength-temperature drift coefficient for DFB lasers is approximately 0.1 nm/°C. Over the operating temperature range of an optical module, the wavelength drift of a DFB laser can reach up to 7 nm (for a commercial temperature range of 0~70°C). This drift range exceeds the channel spacing in many Wavelength Division Multiplexing (WDM) systems, leading to inter-channel crosstalk. Therefore, for WDM systems with narrow channel spacing like DWDM, LAN-WDM, and MWDM, TECs are essential for temperature control to stabilize the output wavelength, regardless of the laser chip type used.

2. Ensuring Device Performance:Some optical devices only achieve optimal performance under stable temperatures. For example:

1）EML Chips:The DFB section has a drift coefficient of 0.1 nm/°C, while the EA (Electro-Absorption) section has a coefficient of 0.5 nm/°C, indicating significant mismatch. Without TEC temperature control, the optical power of an EML chip drops severely at high temperatures, and its modulation characteristics degrade considerably. Thus, EML chips generally require temperature control.

2）SOA Chips:Temperature changes cause shifts in the gain spectrum and increase thermal noise fluctuations. Therefore, TEC temperature control is usually necessary.

3. Heat Dissipation for High-Power Devices:For certain high-power devices, passive cooling methods using highly thermally conductive materials alone are often insufficient to meet heat dissipation requirements. Active cooling solutions like TECs are necessary to achieve effective thermal management.

Huajing Co., Ltd. Established in 2015 in Nanshan District, Shenzhen, Huajing Co., Ltd. is a technology innovation enterprise integrating the R&D, production, and sales of temperature control equipment. The company focuses on three main areas:

1. Semiconductor Refrigeration Technology (TEC)

2. Vapor Compression Refrigeration Technology

3. Application Technology for Flexible Thermally Conductive Heating Films

It provides comprehensive solutions including 3D structural design, CAE thermal simulation analysis, and supporting electronic hardware/software technologies. Over the past six years, the company has experienced rapid development.

Adhering to a philosophy of independent R&D and quality supremacy, Huajing strives to deliver optimal temperature control solutions for its clients.

Through its independent research, the company has applied for multiple national patents and is committed to providing customers with high-performance, highly stable, and reliable thermal management solutions and products.
