In temperature control equipment design, thermoelectric cooling (TEC) modules have become core thermal management solutions in medical, communication, industrial and other fields due to their advantages of no refrigerant, zero vibration, and precise temperature control. The performance of TEC modules depends on three key parameters: power matching, dimensional compatibility, and temperature control accuracy. This document deeply compares critical indicators and combines typical solutions from Huajing Temperature Control to provide selection references for high-demand applications.

1. Power Selection: From Miniature Devices to Industrial-Grade Systems

TEC module power directly determines heat load capacity and must be selected comprehensively according to the application volume, target temperature, and ambient temperature.

Low-power applications (10–50W)Suitable for small equipment cooling or miniature constant-temperature devices. For example, an 18L cooling cabinet can achieve an internal temperature of 10.4℃ at 30W input power (ambient temperature 21.5℃).

Medium–high power applications (100–400W)

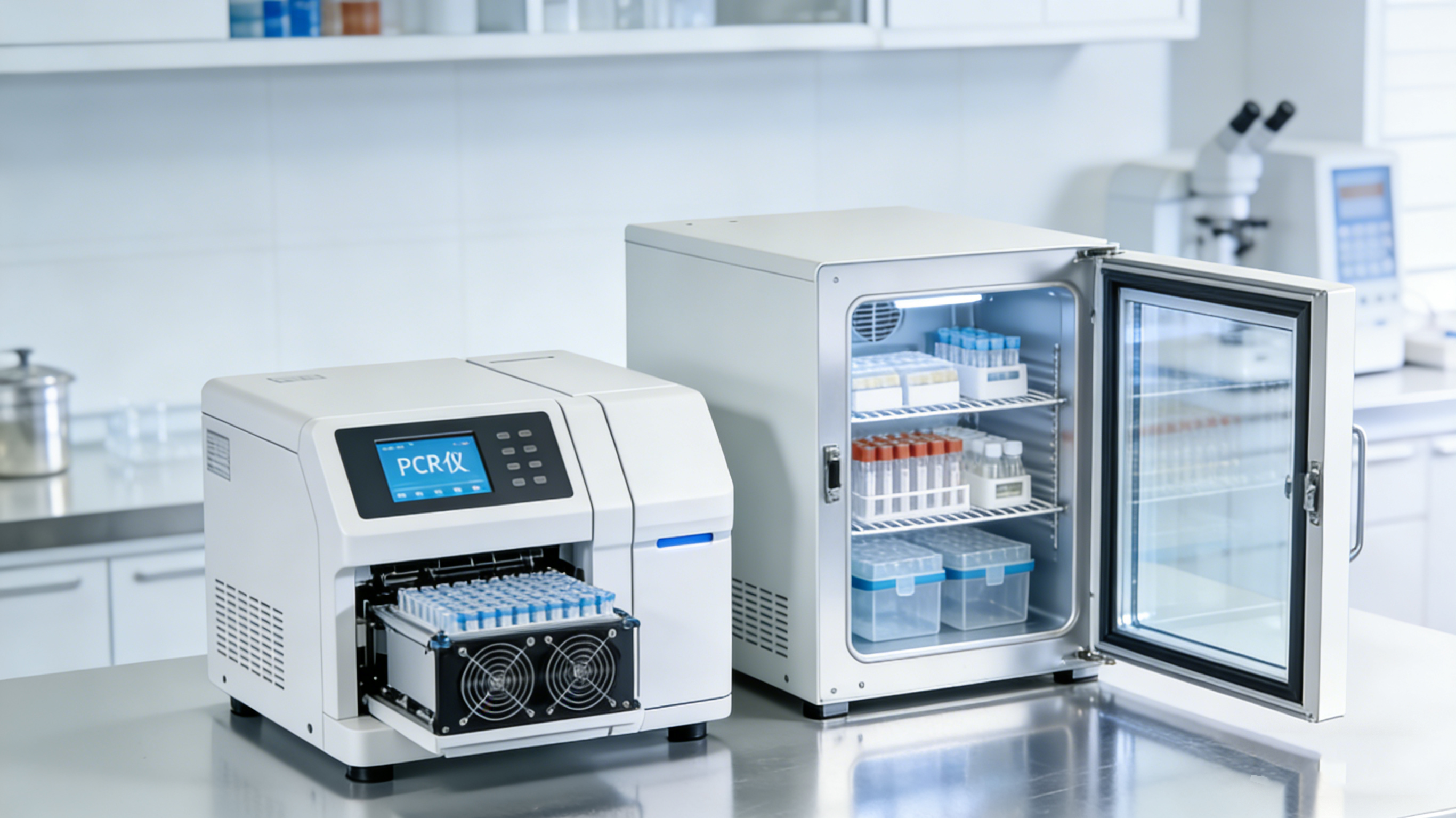

Medical reagent refrigerator (60L): Requires total power of approximately 300W (e.g., 4 pieces of 24V cooling modules, total power 309W).

PCR instrument: Adopts customized TEC modules, 176W~200W per module, supporting rapid heating and cooling at 6~10℃/s.

Industrial high-power solutions (>400W)

Cooling capacity reaches 385W 24VDC at ΔT=0℃.

Supports ambient operating temperature from 10℃ to 70℃.

Custom series configuration can achieve cooling capacity above 800W.

Multi-stage cooling temperature difference up to 150℃.

Efficiency note: When input power exceeds 50W, COP (Coefficient of Performance) may be lower than 0.1. Optimized heat dissipation design is required to improve efficiency.

2. Size and Structural Design: Performance Balance Under Space Constraints

Module size directly affects heat transfer efficiency and spatial compatibility, and must match the internal layout of the equipment.

Standard dimensions:

Square: 15×15mm ~ 62×62mm

Rectangular: 20×40mm, 16×72mm (suitable for narrow spaces)

Miniaturized design:

Ceramic substrate as small as 1.5×1.5mm.

Pellet size 0.2×0.2mm (for chip-level heat dissipation).

Structural optimization:

Heatsink design: When fin height is 49mm, spacing 6mm, thickness 0.5mm, thermal resistance is reduced by 32.2%.

Installation direction: Unrestricted, but hot-end heat dissipation distance > 10cm (to avoid heat recirculation).

3. Temperature Control Accuracy and Reliability: Core Indicators for High-Demand Scenarios

Medical and scientific research equipment has strict requirements for temperature stability. Key parameters include:

Temperature control accuracy

Standard modules: ±0.5℃

High-precision models: ±0.1℃ (thermoelectric new energy solutions), even ±0.01℃

Response speedPCR instruments require heating/cooling rate of 6~10℃/s, which needs matching Huajing customized cooling modules.

Lifetime and reliability

Thermal cycling times: Medical-grade modules support > 500,000 cycles; PCR special version reaches 1,000,000 cycles.

Operating lifetime: > 100,000 hours.

Condensation warning: Anti-condensation design must be added in high-humidity environments in southern regions to avoid cold-end condensate damaging equipment.

4. Huajing Temperature Control Solutions: Customized Capabilities for Medical and Industrial Scenarios

Huajing Temperature Control’s TEC modules are well-known for high stability. Typical application parameters are shown as follows.

Technical Advantages

Thermal simulation design: Optimizes air duct layout through cabinet thermodynamic simulation to ensure uniform temperature distribution.

Multi-stage coupling: Supports cooperation between TEC and vapor compression systems, reducing energy consumption by 68%.

Customized service: Provides non-standard sizes, multi-stage cooling, series power enhancement and other solutions.

Key Selection Recommendations

Power redundancy design: Actual power ≥ 1.3 times the theoretical heat load (e.g., 300W instead of 230W for 60L refrigerator).

Heat dissipation bottleneck breakthrough: Water-cooled heatsink (e.g., DSS series thermal resistance 0.018℃/W) or heat pipe solution is recommended for the hot end.

Temperature control logic optimization: External PID controller is required for high-precision scenarios to avoid temperature fluctuation caused by direct on-off control.

Huajing Solution Highlights

Its TEC thermal control scheme for medical reagent refrigerators achieves precise cooling within 3 hours (from 28℃) through thermal simulation and modular design, with total electric power controlled within 350W, meeting both energy efficiency and reliability standards of medical equipment.

With the increasing demand for high-precision PCR semiconductor temperature control systems, TEC modules will iterate toward higher COP, lower thermal resistance, and intelligent temperature control. During selection, parameters and cost must be balanced. Suppliers with thermal simulation and customization capabilities (such as Huajing Temperature Control) should be prioritized to avoid risks such as condensation and thermal runaway.
